Solar PV cell construction

LG Neon 2 quality testing.jpg

The vast majority of solar photovoltaic cells, or PV cells, are made using silicon crystalline wafers. The most efficient type of cell is monocrystalline, which is manufactured using the well-known Czochralski process. However, more recently, heterojunction, or HJT cells, have become more popular due to the increased efficiency and improved high-temperature performance, as explained in detail below. TOPCon (Tunnel Oxide Passivated Contact) is another relatively new cell technology that incorporates a unique rear-side passivation technique to reduce losses and boost efficiency.

How are silicon PV cells made?

Silicon is generally manufactured from a specific type of sand known as silica sand, which is usually made from crushed quartz rock and contains a high percentage of a natural compound called Silica or silicon dioxide (SiO2). A number of different manufacturing processes are required to make crystalline silicon solar cells, starting from the raw material quartz rock or Quartzite. First, the silica sand is converted into metallurgical-grade silicon by combining Carbon and Quartzite in an arc furnace. This process occurs at very high temperatures and results in 99% pure silicon. Next, the metallurgical-grade silicon is converted into Polysilicon using either a chemical purification process called the Siemens process or upgraded metallurgical-grade silicon (UMG-Si) using a number of more economical metallurgical processes.

At this stage, the metallurgical-grade polysilicon can be doped with trace amounts of either boron or phosphorous to become either P-type or N-type polysilicon. In the past, polycrystalline wafers were made by melting the silicon and casting it into large rectangular blocks before being thinly sliced using a diamond wire cutter to produce the polycrystalline or multi-crystalline wafers.

To manufacture the more efficient monocrystalline wafers which is the dominant type of wafer used today, the doped silicon is generally drawn into a single solid crystal ingot using the Czochralski process. This process involves melting the polycrystalline silicon under high pressure and temperature to slowly grow a single monocrystalline crystal known as an ingot.

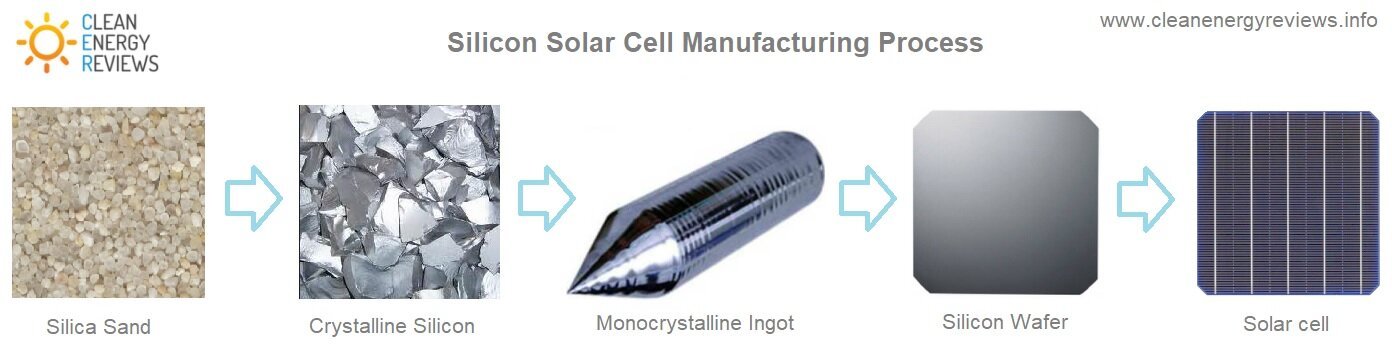

The basic materials and steps involved in making a monocrystalline solar cell - Click to enlarge

Basic steps to produce monocrystalline PV cells

  1. Silica sand is purified in an arc furnace to create 99% pure silicon

  2. The 99% silicon is further refined to become almost 100% pure silicon

  3. The silicon is doped with either boron or phosphorous (P-type or N-type)

  4. The doped silicon is drawn into a solid crystal ingot using the Czochralski process.

  5. The solid round ingot is diamond wire-cut into thin square wafers

  6. The base wafer is coated with an ultra-thin layer of either P-type or N-type silicon to form the PN-junction.

  7. The rear side Aluminium surface field or PERC layers are added.

  8. Metallic fingers and anti-reflective coatings are added.

  9. Flat ribbon busbars (shown below) or thin wire (MBB) busbars are added.

Closeup of a common monocrystalline solar cell showing the fine metallic fingers and 5 busbars.

Closeup of a common monocrystalline solar cell showing the fine metallic fingers and 5 busbars.


P-Type Vs n-Type Solar Cells

All silicon crystalline solar cells are made using a very thin wafer of base silicon with the two main types being P-type and N-type. These are made when the silicon is ‘doped’ with specific chemical elements to create a positive (p-type) or negative (n-type) charge.

The chemical elements used for doping are either phosphorous, which creates a positive charge, and boron, which results in a negative charge. Depending on the type of cell architecture, either N-type or P-type doped silicon is used as the base or 'substrate' of the cell. The majority of both mono and multi-crystalline cells used today use a P-type substrate that has a base of boron-doped silicon. Until recently, only a few premium manufacturers, such as Panasonic, SunPower, and REC, used the more efficient N-type silicon wafers, although most companies are now producing N-type cells as the cost has declined considerably. N-type cells offer higher performance and a lower rate of LID or light-induced degradation, plus an improved temperature coefficient compared to P-type cells.

  • N-Type – Negatively charged Silicon doped with Phosphorous

  • P-Type – Positively charged Silicon doped with Boron

All solar cells use a combination of P-type and N-type silicon to form the p-n junction, which is fundamental to the function of a solar cell. The difference is P-type cells use the Boron-doped silicon base together with an ultra-thin layer of N-type silicon, while N-type cells use an N-type silicon base with an ultra-thin layer of P-type silicon, as shown in the diagram below.


P-Type Solar cells

Basic construction diagram of a common P-type silicon cell

Basic construction diagram of a common P-type silicon cell

As explained above, the P-type and N-type silicon are brought together and form what’s known as a p-n junction. The junction creates an electric field which enables the flow of electrons when solar radiation passes through the cell. The photovoltaic effect is when light photons (energy) free the electrons from the silicon creating an electric current.


N-Type Solar cells

Basic construction diagram of a more efficient N-type silicon cell

Basic construction diagram of a more efficient N-type silicon cell

Advantages of N-Type

Due to the very nature and material composition, N-type cells offer higher performance through having a greater tolerance to impurities and lower defects which increases overall efficiency. In addition, n-type cells have greater temperature tolerance compared to both mono and multi P-type cells. More importantly, n-type cells do not suffer from the issues of LID (light-induced degradation) due to the boron-oxygen defects which are a common issue with p-type cells doped with Boron.

  • Lower impurities in N-type substrate

  • Improved high-temperature performance

  • Lower light-induced degradation - LID

Cost Vs Efficiency

N-type cell construction is more expensive as it uses what's known as a boron diffusion process to add the thin p-type 'emitter' layer. This diffusion process is more complex and requires higher temperatures compared to the p-type cell phosphorous diffusion process. Although N-type cells are more expensive to manufacture, the base n-type silicon is of a much higher purity which enables higher efficiency, lower losses and much lower degradation over time; this results in higher generation and performance which also improves payback and generally outweighs the additional upfront cost over the life of the panel.


Heterojunction Solar cells

Heterojunction or HJT solar cells generally use a base of high-purity N-type crystalline silicon with additional thin-film layers of amorphous silicon on either side of the cell, forming what is known as the heterojunction. The different photovoltaic materials help absorb more light photons and reduce the recombination losses, thus boosting overall cell efficiency. Current HJT panels on the market, such as the REC Alpha series, achieve panel efficiencies as high as 22.3%.

Basic construction diagram of a N-type Heterojunction or HJT solar cell

One of the most impressive characteristics of HJT cells is the incredibly low-temperature coefficient which is around 0.26%/°C. This is approximately 40% lower compared to common monocrystalline cells. Solar panel power output is rated at a cell temperature of 25°C or STC (Standard Test Conditions), so every degree above this slightly reduces power output. In common multi and monocrystalline cells, the temperature coefficient is around 0.38% per °C which can reduce total power output by up to 18% during very hot windless days. In comparison, HJT cells have a much lower temperature coefficient of around 0.26% /°C which decreases cell losses down to approximately 10% on very hot days.


N-Type TOPCon Solar cells

TOPCon stands for Tunnel Oxide Passivated Contact and refers to a unique rear-side passivation technique first developed by the German solar research institution Fraunhofer ISE in 2014. After five years of development, TOPCon Technology has moved into large-scale production and is expected to slowly replace the industry standard PERC cell technology over the next few years. TOPCon cell architecture essentially helps reduce what is known as the recombination losses in the cell, which in turn boosts cell efficiency. Due to a complex number of factors, there are several losses within a solar cell that cause electrons to recombine back into the cell without forming an electric current. TOPCon technology not only helps to reduce this recombination loss but, being a full-area rear contact, it also aids current flow within the cell structure and can increase cell efficiency above 25%. Note solar panel efficiency is always lower than the cell efficiency as it takes into account unused sections of the panel and the additional losses through all the cells, busbars and collectors.

Basic construction diagram of an N-type TOPCon silicon solar cell

While TOPCon technology is generally used in conjunction with N-type substrates, it can also work effectively with more common P-type substrates to boost cell efficiency up to 24%.


Sources & References

  • Scientific World Journal - Advancements in N-Type Base Crystalline Silicon Solar Cells and Their Emergence in the Photovoltaic Industry - Atteq ur Rehman and Soo Hong Lee*

  • Electrical Engineering and Technology - www.electrical4u.com

  • PVeducation.org - https://www.pveducation.org/pvcdrom/pn-junctions/formation-of-a-pn-junction

  • https://www.aleo-solar.com/perc-cell-technology-explained/

  • https://www.pv-magazine.com/2021/06/02/longi-achieves-25-21-efficiency-for-topcon-solar-cell-announces-two-more-records/


How are solar panels made?

Here in our detailed article we describe how solar panels are manufactured and recycled. Solar panels are made using six main components in advanced manufacturing facilities using precise optical sensors to position each component along with specialised testing and quality control equipment.

Click on the image above to go to the detailed solar panel construction article.

Click on the image above to go to the detailed solar panel construction article.
